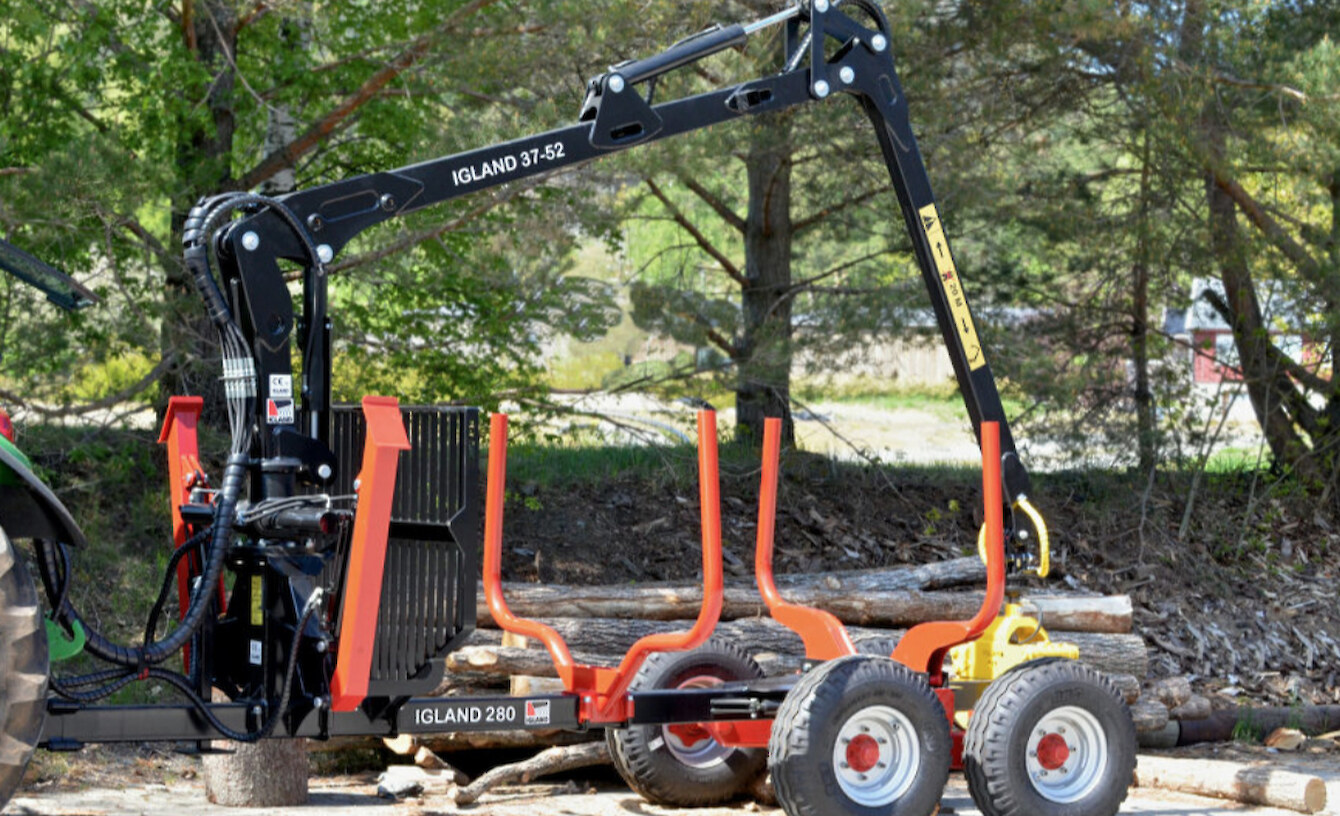

IGLAND 280 features 7 ton load capacity on trailer and is delivered fully equipped with crane, rotator and grapple. The crane is detachable and can be mounted on the 3-point hitch linkage of the tractor and is equipped with hydraulic fold-down stabilizer legs. The bogie is equipped with tyre dimensions: 11,5 / 80 x 15,3 / 10 layer, 2 log retaining posts, one fixed and one adjustable. IGLAND 280 is without brakes and bogie steering. IGLAND 280 timber trailer is Igland smallest model and can be delivered without a crane if desired. IGLAND 280 is a trailer for those who need to carry small volumes of timber from the forest to the loading site. This is the only trailer from IGLAND that comes with hinged frame steering.
Specifications
- Length/ Width: 5.3/1.9 meters
- Hydr.pressure. Max/ min: 210/160 bar
- Tire dimensions: 11,5/80 x 15,3/10
- Turning angle: 50 degrees
- Load length: 3.7m
- Payload: 6500 kg
- Total Weight: 8000 kg
- Weight of trailer without crane: 970 kg
- Brakes: optional disc brakes
- Ground clearance: 52 cm
- Number of log retaining posts: 2 pair
- Crane selections: 32-51, 37-52, 37-64s
