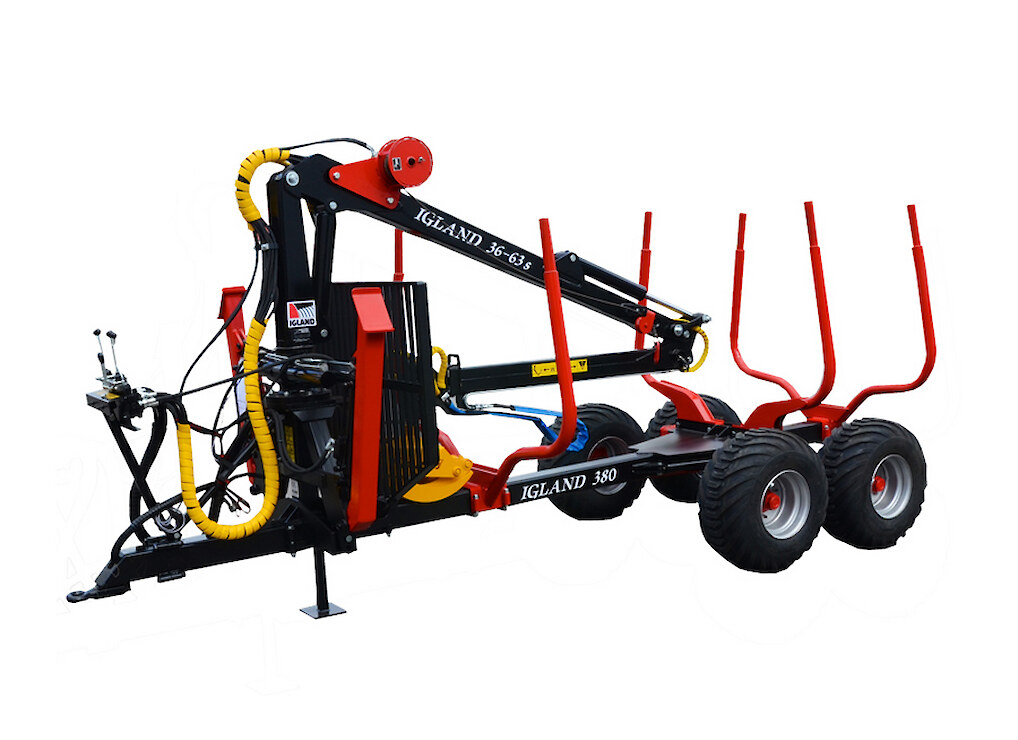

IGLAND 380 features 7.5 ton load capacity on trailer and is delivered fully equipped. Our timber trailers are equipped with crane, rotator and grapple. The crane is detachable and can be mounted on the 3-point hitch linkage of the tractor and is equipped with hydraulic fold-down stabilizer legs. The bogie is equipped with tyre dimensions: 400 / 60 - 15.5 / 14 layer, 2 log retaining posts, one fixed and one adjustable. Bogie includes steering. IGLAND 380 timber trailer is IGLAND best-selling timber trailer. This is a timber trailer that suits most tasks in capacity and needs. The bogie steering results in excellent turning radius for those with tight turning conditions. If you combine this timber trailer with the Swingtrac system this will be a very manageable timber trailer to guide under demanding conditions. NB: Swingtrac system available on IGLAND 380 as an option.
Specifications
- Length/ Width: 5.6 / 2.2 meters
- Hydr.pressure. Max/ min: 210 / 160 bar
- Tire dimensions: 400 / 60 - 15.5 / 14 layer
- Max swivel angle: 50 degrees
- Swivel force at 210 bar: Approx. 3.0 tonns
- Load capacity: 7500 kg
- Total Weight: 9000 kg
- Weight of trailer without crane: 1030 kg
- Brakes: Optional
- Ground clearance: 52 cm
- Number of log retaining posts: 2 pair
- Swingtrac: Optional
- Crane selections: 31-51, 37-52, 37-64s
