- Pulling capacity 60 kN (6 tons) x 2 drums
- Ideal for tractors from 52 to 88 kW (70 - 120 hp)
- Automatic safety brake
- Mechanical control
- 3-point hitch as standard
- Weight 838 kg

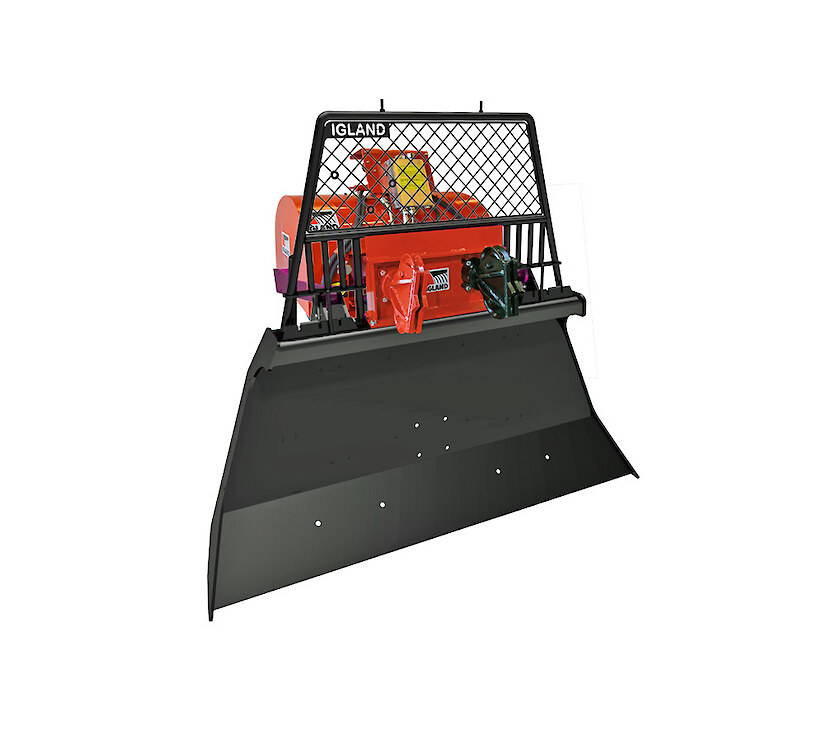

- TLP Logging plate width 2,20 meters/1,10 meters hight
- Cableguard prevents derailment
- Radio control is optional
- High-capacity drum
- Good spooling characteristics
- Propeller port with double sheaves and wire guidence
- Electrohydraulic high pressure operation with self-contained hydraulics is standard
- Worm gear gives excellent power in slow operation
- Maintains high pressure during winching
Specifications
- Max pulling capacity / empty drum: 60 kN (6 tons) each drum
- Max pulling capacity / full drum: 32,4 kN (3,2 tons)
- Number of drums: 2
- Wire rope, theoretical capacity: 118 m, 11 mm/ 97 m, 12 mm (ISO 6687)
- Recommended wire rope length: 50 m, 11-12 mm
- Pulling speed at 540 rpm: 0,60 – 1,11 m/s
- Ratio: 1:9,7
- Necessary power input: 44,8 kW (ISO 6687)
- Braking power: Min 75 kN (7,5 tons)
- Controls: Electrohydraulic LH, 13-poles
- Clutch: Single friction plate
- Brake: Automatic safety brake
- Mounting: 3-point hitch
- PTO input, distance from ground: 58 cm
- Height/ Width/ Depth: 185 / 220 / 93 cm
- Weight (without wire rope): 838 kg
